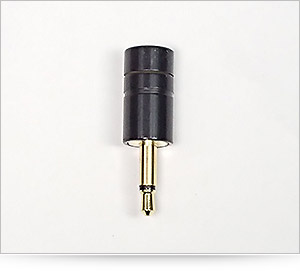

TPG410-O (Omni-Directional)

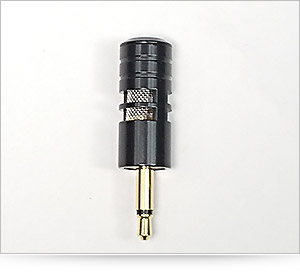

TPG420-U (Uni-Directional)

Description

  • Plug-in type condenser microphone

Specifications

  • Element : Back Electret-Condenser
  • Polar Pattern :
    • Uni-Directional
    • Omni-Directional
  • Frequency Response :
    • 80~18K Hz (Uni)
    • 20~20K Hz (Omni)
  • Impedance :
    • 600 Ω ± 30% (at 1K Hz) (Uni)
    • 1,700 Ω ± 30% (at 1K Hz) (Omni)
  • Sensitivity :
    • -64±3 dB (0 dB = 1 V/microbar) (Uni)
    • -61±3 dB (0 dB = 1 V/microbar) (Omni)
  • S/N Ratio :
    • 55 dB (Uni)
    • Over 58 dB (Omni)
  • SPL :
    • 100 dB (Uni)
    • 120 dB (Omni)
  • Operating Voltage :
    • 1.5~10 V DC (RL:680 Ω) (Uni)
    • 1.5~10 V DC (RL:2K2 Ω) (Omni)
  • Dimensions :
    • Φ10.5 x 25.6 mm (Uni)
    • Φ10 x 19 mm (Omni)
