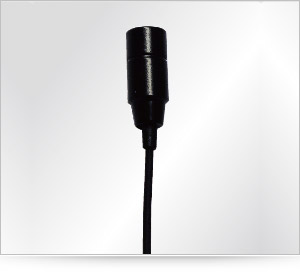

TTC303-O

Specifications

  • Element : Back Electret-Condenser
  • Polar Pattern : Omni-Directional
  • Frequency Response : 20~20K Hz
  • Open Circuit Sensitivity : -62±3 dB (0 dB = 1 V/microbar) (at 1K Hz)
  • Impedance : 1,500 Ω
  • Operating Voltage : 1.5~10 V DC (RL : 2K2 Ω)
  • Color : Skin . Black
  • Connector : TA3F . TA4F . MiniJack . 3pin Lemo . Φ3.5 Plug
  • Dimensions : Φ7.3 x 17.3 mm
  • Wire : Φ1.5 mm x 1.2 Meter
  • Accessory : Windscreen . Clip
  • S/N Ratio: 58 dB
  • SPL: 120 dB
