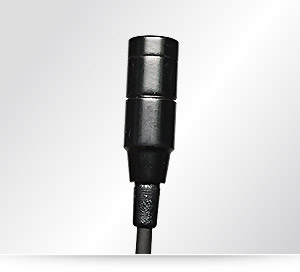

TTC302WP-O with an IP57 waterproof rating
Specifications
- Element : Back Electret-Condenser
- Polar Pattern : Omni-Directional
- Frequency Response : 20~20K Hz
- Open Circuit Sensitivity : -64±3 dB (0 dB = 1 V/microbar) (at 1K Hz)
- Impedance : 500 Ω
- Operating Voltage : 1.5~10 V DC (RL : 2K2 Ω)
- Color : Skin . Black . Purple
- Connector : A3F . TA4F . MiniJack . 3pin Lemo . Φ3.5 Plug
- Dimensions : Φ5 x 14 mm
- Wire : Φ1.5 mm x 1.2 Meter

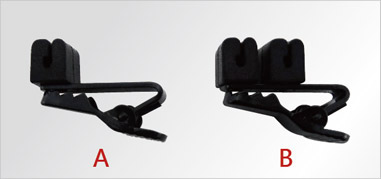

- Accessory : Windscreen . Clip
- S/N Ratio : 70 dB
- SPL : 123 dB
