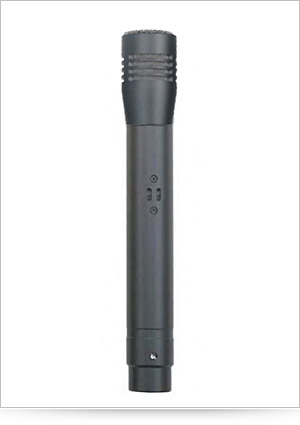

TPM701
Description
- Contoured frequency response for clean, instrumental reproduction and rich vocal pickup
- Professional-quality reproduction for drum, percussion, and instrument amplifier miking
- Uniform cardioid pickup pattern isolates the main sound source while reducing background noise
- Extremely durable under the heaviest use
Specifications
- Element : Back Electret-Condenser
- Polar Pattern : Cardioid
- Frequency Response : 20~20K Hz
- Low Frequency Roll – Off : 180 Hz, 12 dB/octave
- Open Circuit Sensitivity : -59 dB/microbar
- Impedance : 150 Ω
- Maximum Input Sound Level : 137 dB SPL, 1K Hz at 1% T.H.D.
- Dynamic Range : 120 dB, 1K Hz at Max SPL
- Signal-To-Noise Ratio : 77 dB, 1K Hz at 1 Pa
- Operating Voltage : Phantom Power 11~52 V DC, 2 mA typical
- Switches : Flat, Roll – Off 10 dB pad (nominal)
- Output Connector : Integral 3-pin XLRM-type
- Dimensions : Φ28x168 mm
