Description
- Professional sound with robust IP57 waterproof design
- Great lightweight design for comfortable wearing
- Telescopic design for all head and face sizes
- Boom with both sides of MIC holder design can be easily attached to the right or left side
- Excellent thin boom (Φ1 mm)

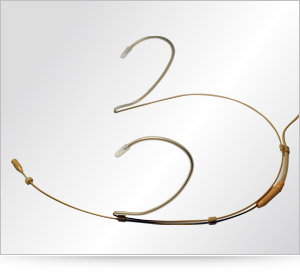

THS201WP-U/THS201WP-O
Specifications
-

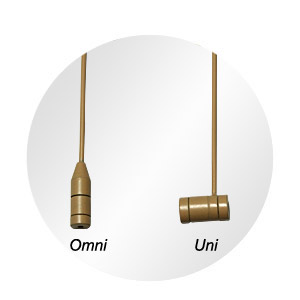

Polar Pattern :
- Uni-Directional
- Omni-Directional
-
Frequency Response :
- 70~16K Hz (Uni)
- 20~20K Hz (Omni)
-
Impedance :
- 1,200 Ω ± 30% (at 1K Hz) (Uni)
- 1,500 Ω ± 30% (at 1K Hz) (Omni)
-
Sensitivity :
- -68±3 dB (0 dB = 1 V/microbar) (Uni)
- -67±3 dB (0 dB = 1 V/microbar) (Omni)
-
S/N Ratio :
- 55 dB (Uni)
- 55 dB (Omni)
-
SPL :
- 100 dB (Uni)
- 110 dB (Omni))
- Operating Voltage : 1~10 V DC (RL : 2K2 Ω)
- Color : Skin . Black . Purple
- Connector : TA3F . TA4F . MiniJack . 3pin Lemo . Φ3.5 Plug
- Dimensions :
- Capsule Housing :
- Φ5 x 9.5 mm (Uni)
- Φ4 x 13 mm (Omni)
-
Boom :
- Φ1 x 190 mm (Uni)
- Φ1 x 150 mm (Omni)
- Wire : Φ1.5mm x 1.2 Meter
- Accessory : Windscreen . Clip
