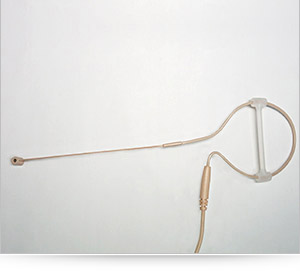

THS107-U (Uni-Directional)

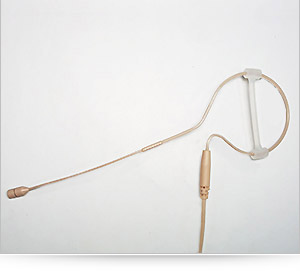

THS107-O (Omni-Directional)
Special Boom Design
- The combination of soft tube and hard tube
- Soft tube for the front boom to adjust the direction of capsule housing
- Hard tube with rubber belt for the rear boom to fix it on the ear
Specifications
-
Polar Pattern :
- Uni-Directional
- Omni-Directional
-
Frequency Response :
- 70~16K Hz (Uni)
- 20~20K Hz (Omni)
-
Impedance :
- 1,200 Ω ± 30% (at 1K Hz) (Uni)
- 500 Ω ± 30% (at 1K Hz) (Omni)
-
Sensitivity :
- -67±3 dB (0 dB = 1 V/microbar) (Uni)
- -64±3 dB (0 dB = 1 V/microbar) (Omni)
-
S/N Ratio :
- 55 dB (Uni)
- 70 dB (Omni)
-
SPL :
- 100 dB (Uni)
- 127 dB (Omni)
- Operating Voltage : 1~10 V DC (RL : 2K2 Ω)
- Color : Skin . Black . Brown
- Connector : TA3F . TA4F . MiniJack . 3pin Lemo . Φ3.5 Plug
- Dimensions :
- Capsule Housing :
- Φ5 x 6 mm (Uni)
- Φ5 x 11.3 mm (Omni)
-
Boom :
- Φ1 x 89 mm (Uni)
- Φ1 x 65 mm (Omni)
- Wire : Φ1.5 mmx1.2Meter
- Accessory : Windscreen . Clip
